Entry counter PKE REGULAR

Standard colors

  RAL 1003
  RAL 9006

It is possible to order with personalized coloring in RAL.

Intuitive interface

Ease of use Intuitive interface

Endless

Endless Dynamic entry

VOIP intercom

Audio-video communication system with operator VOIP intercom

QR Technology

Integration with systems and applications QR Technology

Low operating costs

Low operating costs Unpretentiousness in service

Compatibility

Compatibility with traditional systems FANFOLD ticket format

Entrance parking terminals PKE REGULAR combine elegant design and wide functionality. The system architecture ensures compatibility with most modern ticketing technologies, any media (RFID, TAG, NFC, UHF) and optical reading systems (barcodes, QR codes, car license plates).


Technical details

Temperature Range:
-40ºC +55ºC with heater, 0ºC to 55ºC without heater
Food:
100-120 / 220-240V, 50-60Hz
Energy consumption:
120W (420W with heater)
Dimensions:
1240mm x 400mm x 530mm (height x width x depth)

Configuration

STANDARD VERSION

User interface

Display 7" TFT;

Ticket printing button;

Operator call button;

Two main interface languages;

LED status indication.

Components

FANFOLD format ticket printer with barcode or QR code;

EMM / Manchester Proximity reader (ISO 7816, 125 kHz);

IP Intercom for communication with the operator;

Rack for cassette with FANFOLD tickets with a capacity of 5.000 pieces;

Two-level sensor for the end of tickets (low level of tickets / tickets are over);

Controlled climate system - humidity control, heating, ventilation with air filters;

Embedded x86 based PC with SSD support for storage.

Appearance and safety

Case made of 2 mm AISI 430 stainless steel with powder coating;

Reinforced front panel with hinges and internal lock;

Side door with built-in lock;

Sensor for opening the front panel and side door.

Connection

Built-in network board (RJ45), network protocol (TCP/IP);

Barrier control via GPIO.

Certification

Declaration of the EAEU N RU D-ES.AG03.V.00520/18, Directive 2004/108/CE, Directive 2006/95/CE, UNE-EN 61000-6-3, UNEEN 61000-6-1, EN 301 489- 1 V1.9.2, EN 301 489-3 V1.6.1, UNEEN 60950-1.

Degree of protection

UNE-EN 20324 (EN 60529). Degree of protection: IP54;

UNE-EN 50102. Degree of protection of the housing against external influences: IK10.

System of external and internal lighting.

OPTIONS

User interface

Front camera integrated into the intercom system;

Touch screen 7" TFT.

Components

ROLL ticket printer. Can be configured with two ROLL printers;

Scanner for reading barcodes, the ability to apply off-line labels on tickets and print new tickets;

PGCT encoder to encode and read magnetic stripe tickets with built-in laser barcode scanner;

Barcode and QR code reader (1D/2D), with the ability to read from any media and mobile devices;

Mifare / NFC card reader (ISO 14443, ISO 18092, 13.56 MHz);

EMV bank card reader with PIN keyboard and NFC contactless payment module (allows you to activate the optional TICKETLESS mode to use an NFC bank card or Apple/Samsung/Google Pay as an identifier);

EMM / Manchester Proximity reader (ISO 7816, 125 kHz);

Two-level execution - a double-height entrance counter with two user interfaces (for the convenience of arranging the passage of buses, trucks and cars).

External devices

Vehicle type recognition system (three classes - motorcycles, cars and trucks);

EYE SYSTEM car photo fixation system (collection and storage of pictures of vehicles entering the parking area);

ANPR license plate reading system (reading and entering into the database of car numbers of one-time visitors with reference to tickets, automatic control of barriers for regular subscribers and guests by invitation);

Long-range RFID tag reading system LONG RANGE (management of barriers in automatic mode for regular subscribers);

Scoreboard for free parking spaces;

Parking navigation system (for the convenience of finding free parking spaces, the option includes ultrasonic sensors with color indicators of each free space, as well as a mini-board with pointers and zone counters).

Exit counter PKE REGULAR

Standard colors

  RAL 1003
  RAL 9006

It is possible to order with personalized coloring in RAL.

Intuitive interface

Ease of use Intuitive interface

Endless

Endless Dynamic entry

VOIP intercom

Audio-video communication system with operator VOIP intercom

QR Technology

Integration with systems and applications QR Technology

Low operating costs

Low operating costs Unpretentiousness in service

Dual ROLL printer

Maximum performance Dual ROLL printer

Compatibility

Compatibility with traditional systems FANFOLD ticket format

Exit parking terminals PKE REGULAR combine elegant design and wide functionality. The system architecture ensures compatibility with most modern ticketing technologies, any media (RFID, TAG, NFC, UHF) and optical reading systems (barcodes, QR codes, car license plates).


Technical details

Temperature Range:
-40ºC to 55ºC with heater, 0ºC to 55ºC without heater
Food:
100-120 / 220-240V, 50-60Hz
Energy consumption:
120W (420W with heater)
Dimensions:
1242mm x 400mm x 530mm (height x width x depth)

Configuration

STANDARD VERSION

User interface

Display 7" TFT;

Operator call button;

Two main interface languages;

LED status indication.

Components

Ticket reader of barcodes and QR codes (1D/2D);

EMM / Manchester Proximity reader (ISO 7816, 125 kHz);

IP Intercom for communication with the operator;

FANFOLD ticket collection basket with a capacity of 5,000 pieces;

Controlled climate system - humidity control, heating, ventilation with air filters;

Embedded x86 based PC with SSD support for storage.

Appearance and safety

Case made of 2 mm AISI 430 stainless steel with powder coating;

Reinforced front panel with hinges and internal lock;

Side door with built-in lock;

Sensor for opening the front panel and side door.

Connection

Built-in network board (RJ45), network protocol (TCP/IP);

Barrier control via GPIO.

Certification

Declaration of the EAEU N RU D-ES.AG03.V.00520/18, Directive 2004/108/CE, Directive 2006/95/CE, UNE-EN 61000-6-3, UNEEN 61000-6-1, EN 301 489- 1 V1.9.2, EN 301 489-3 V1.6.1, UNEEN 60950-1.

Degree of protection

UNE-EN 20324 (EN 60529). Degree of protection: IP54;

UNE-EN 50102. Degree of protection of the housing against external influences: IK10.

System of external and internal lighting.

OPTIONS

User interface

Front camera integrated into the intercom system;

Touch screen 7" TFT.

Components

Motorized ticket barcode reader BCR;

Scanner for reading barcodes, the ability to apply off-line labels on tickets and print new tickets;

PGCT encoder to encode and read magnetic stripe tickets with built-in laser barcode scanner;

Barcode and QR code reader (1D/2D), with the ability to read from any media and mobile devices;

Mifare / NFC card reader (ISO 14443, ISO 18092, 13.56 MHz);

EMV bank card reader with PIN keyboard and NFC contactless payment module (allows you to activate the optional TICKETLESS mode to use an NFC bank card or Apple/Samsung/Google Pay as an identifier);

Two-level execution - a double-height entrance counter with two user interfaces (for the convenience of arranging the passage of buses, trucks and cars).

External devices

ANPR license plate reading system (reading and matching car numbers of one-time visitors with reference to tickets, automatic control of barriers for regular subscribers, guests by invitation and one-time visitors with a paid ticket);

System for reading RFID tags LONG RANGE long-range (management of barriers in automatic mode for regular subscribers).

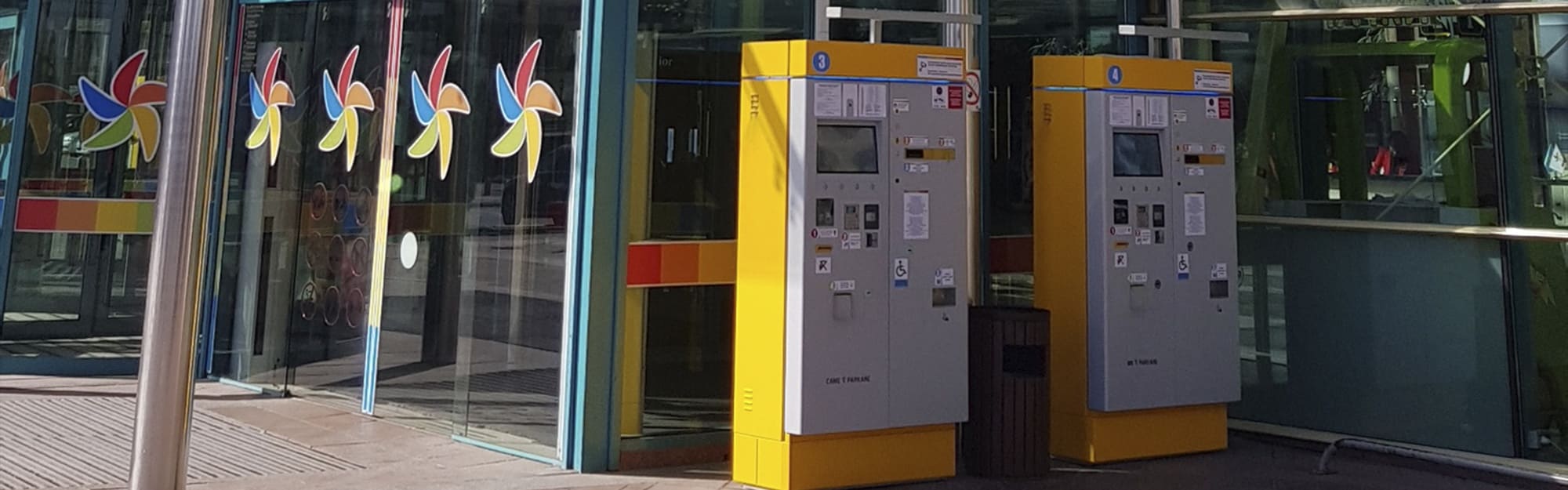

Automatic checkout PKE

Standard colors

  RAL 1003
  RAL 9006

It is possible to order with personalized coloring in RAL.

EMV module

Payment by bank cards EMV module

Banknote dispenser

Fast issuance of change in banknotes Banknote dispenser

VOIP intercom

Audio-video communication system with operator VOIP intercom

fiscal printer

Pay-On-Line, compliance with Federal Law-54 fiscal printer

fiscal printer

Recycling - receiving and issuing change Recycler and Smart Hopper

Compatibility

Compatibility with traditional systems FANFOLD ticket format

PKE automatic cash registers are compatible with most modern ticketing technologies, any media (barcodes, QR codes, RFID, TAG, NFC). The functionality of the CAME PARKARE LINCE parking software allows you to pay for car license plates, replenish electronic wallets for parking passes, print lost tickets, integrate with third-party payment systems, loyalty systems, etc.


Technical details

Temperature Range:
-40ºC to 55ºC with heater, 0ºC to 55ºC without heater
Food:
100-120 / 220-240V, 50-60Hz
Energy consumption:
360 W (1.500 W with heater)
Dimensions:
1946mm x 980mm x 536mm (height x width x depth)

Configuration

STANDARD VERSION

User interface

15.6” TFT LVDS widescreen display;

Multilingual interface (sequential display of the four main menu languages ​​by pressing the selection button);

LED status indication;

Four buttons to move through the menu and select options.

Components

1D/2D (QR) barcode reader, the ability to read the code from paper tickets and the screen of mobile devices;

RFID card reader;

IP Intercom for communication with the operator;

Controlled climate system - humidity control, heating, ventilation with air filters;

Built-in PC based on Linux and Compact Flash for data storage;

Fully complies with FZ-54.

Payment module

Self-replenishing bill acceptor for all types of banknotes with the possibility of issuing change in banknotes up to five denominations (up to 60 banknotes of the same or different denominations). Receipt cassette with a capacity of up to 1,000 pieces;

Self-replenishing coin acceptor for all types of coins with the function of issuing change in four denominations;

Optional removable coin hopper for up to 1,000 coins.

Appearance and safety

Housing made of 2 mm AP02 galvanized steel with polymer powder coating;

Two separate doors delimiting access for service and collection with reinforced hinges and three-point internal locks;

Door opening sensors and cash drawer sensors;

System of external and internal lighting;

Anti-vandal screen protection 4 mm polycarbonate;

Embedded x86 based PC with SSD support for storage.

Connection

Built-in network board (RJ45), network protocol (TCP/IP).

Certification

Declaration of the EAEU N RU D-ES.AG03.V.00520/18, Directive 2014/53/UE, UNE-EN 61000-6-3, UNE-EN 61000-6-1, EN 301 489-3, UNE-EN 60950-1.

Degree of protection

UNE-EN 20324 (EN 60529). Degree of protection: IP54;

UNE-EN 50102. Degree of protection of the housing against external influences: IK10.

OPTIONS

User interface

Touch screen 15.6” TFT;

Optional 28” TFT widescreen display for information and advertising.

Components

Front camera integrated into the intercom system;

Motorized ticket reader BCR;

Printer for printing lost FANFOLD tickets;

Printer for printing lost ROLL tickets;

ROBOTICKET printer-reader with a built-in laser scanner for reading barcodes, the ability to apply off-line labels on tickets and print lost tickets;

PGCT encoder for encoding and reading magnetic stripe tickets, with built-in laser scanner for reading barcodes;

Dispenser for issuing change in banknotes of two denominations up to 500 banknotes per cassette (with preloading);

Module for accepting non-cash payments by bank cards (with magnetic stripe, chip and contactless) and mobile devices (NFC). Keyboard for entering a pin code.

Entry counter PKE SLIM

Standard colors

  RAL 1003
  RAL 9006

It is possible to order with personalized coloring in RAL.

Intuitive interface

Ease of use Intuitive interface

Endless

Endless Dynamic entry

VOIP intercom

Audio-video communication system with operator VOIP intercom

QR Technology

Integration with systems and applications QR Technology

Low operating costs

Low operating costs Unpretentiousness in service

Dual ROLL printer

Maximum performance Dual ROLL printer

Entrance parking terminals PKE SLIM combine compactness, elegant design and wide functionality. The system architecture ensures compatibility with most modern ticketing technologies, any media (RFID, TAG, NFC, UHF) and optical reading systems (barcodes, QR codes, car license plates).


Technical details

Temperature Range:
-40ºC to 55ºC with heater, 0ºC to 55ºC without heater
Food:
100-120 / 220-240V, 50-60Hz
Energy consumption:
120W (420W with heater)
Dimensions:
1240mm x 310mm x 530mm (height x width x depth)

Configuration

STANDARD VERSION

User interface

Display 7" TFT;

Ticket printing button;

Operator call button;

Two main interface languages;

LED status indication.

Components

Ticket printer with a barcode or QR code and the ability to print data on the entry of the car (date, time, terminal number, etc.) with a durable thermal head, built-in knife and a sensor for the presence of a ticket in the "lip lip";

Thermal paper roll holder (58x150x25.4) with a capacity of 3000 tickets at a recommended paper weight of 110 ~ 145 gm with a paper end sensor;

EMM / Manchester Proximity reader (ISO 7816, 125 kHz);

IP Intercom for communication with the operator;

Controlled climate system - humidity control, heating, ventilation with air filters;

Embedded x86 based PC with SSD support for storage.

Appearance and safety

Case made of 2 mm AISI 430 stainless steel with powder coating;

Side door with built-in lock;

Sensor for opening the front panel and side door.

Connection

Built-in network board (RJ45), network protocol (TCP/IP);

Barrier control via GPIO.

Certification

Declaration of the EAEU N RU D-ES.AG03.V.00520/18, Directive 2004/108/CE, Directive 2006/95/CE, UNE-EN 61000-6-3, UNEEN 61000-6-1, EN 301 489- 1 V1.9.2, EN 301 489-3 V1.6.1, UNEEN 60950-1.

Degree of protection

UNE-EN 20324 (EN 60529). Degree of protection: IP54;

UNE-EN 50102. Degree of protection of the housing against external influences: IK10.

System of external and internal lighting.

OPTIONS

User interface

Front camera integrated into the intercom system;

Touch screen 7" TFT.

Components

Dual ROLL ticket printer;

Barcode and QR code reader (1D/2D), with the ability to read from any media and mobile devices;

Mifare / NFC card reader (ISO 14443, ISO 18092, 13.56 MHz).

External devices

Vehicle type recognition system (three classes - motorcycles, cars and trucks);

EYE SYSTEM car photo fixation system (collection and storage of pictures of vehicles entering the parking area);

ANPR license plate reading system (reading and entering into the database of car numbers of one-time visitors with reference to tickets, automatic control of barriers for regular subscribers and guests by invitation);

Long-range RFID tag reading system LONG RANGE (management of barriers in automatic mode for regular subscribers);

Scoreboard for free parking spaces;

Parking navigation system (for the convenience of finding free parking spaces, the option includes ultrasonic sensors with color indicators of each free space, as well as a mini-board with pointers and zone counters).

Exit counter PKE SLIM

Standard colors

  RAL 1003
  RAL 9006

It is possible to order with personalized coloring in RAL.

Intuitive interface

Ease of use Intuitive interface

Endless

Endless Dynamic entry

VOIP intercom

Audio-video communication system with operator VOIP intercom

QR Technology

Integration with systems and applications QR Technology

Low operating costs

Low operating costs Unpretentiousness in service

Any ticket format

Any ticket format FANFOLD / ROLL / MS ticket format

Exit parking terminals PKE SLIM combine compactness, elegant design and wide functionality. The system architecture ensures compatibility with most modern ticketing technologies, any media (RFID, TAG, NFC, UHF) and optical reading systems (barcodes, QR codes, car license plates).


Technical details

Temperature Range:
-40ºC to 55ºC with heater, 0ºC to 55ºC without heater
Food:
100-120 / 220-240V, 50-60Hz
Energy consumption:
120W (420W with heater)
Dimensions:
1240mm x 310mm x 530mm (height x width x depth)

Configuration

STANDARD VERSION

User interface

Display 7" TFT;

Operator call button;

Two main interface languages;

LED status indication.

Components

Ticket reader of barcodes and QR codes (1D/2D);

EMM / Manchester Proximity reader (ISO 7816, 125 kHz);

IP Intercom for communication with the operator;

Controlled climate system - humidity control, heating, ventilation with air filters;

Embedded x86 based PC with SSD support for storage.

Appearance and safety

Case made of 2 mm AISI 430 stainless steel with powder coating;

Side door with built-in lock;

Sensor for opening the front panel and side door.

Connection

Built-in network board (RJ45), network protocol (TCP/IP);

Barrier control via GPIO.

Certification

Declaration of the EAEU N RU D-ES.AG03.V.00520/18, Directive 2004/108/CE, Directive 2006/95/CE, UNE-EN 61000-6-3, UNEEN 61000-6-1, EN 301 489- 1 V1.9.2, EN 301 489-3 V1.6.1, UNEEN 60950-1.

Degree of protection

UNE-EN 20324 (EN 60529). Degree of protection: IP54;

UNE-EN 50102. Degree of protection of the housing against external influences: IK10.

System of external and internal lighting.

OPTIONS

User interface

Front camera integrated into the intercom system;

Touch screen 7" TFT.

Components

Mifare / NFC card reader (ISO 14443, ISO 18092, 13.56 MHz).

External devices

ANPR license plate reading system (reading and matching car numbers of one-time visitors with reference to tickets, automatic control of barriers for regular subscribers, guests by invitation and one-time visitors with a paid ticket);

System for reading RFID tags LONG RANGE long-range (management of barriers in automatic mode for regular subscribers).

Barrier GPX
Safety

Safety Brushless motor for increased performance and maximum life.

Appearance

Appearance Modern design, can be equipped with a boom folding mechanism for openings with limited height

Functionality and comfort

Functionality and comfort Ability to connect an emergency power board with batteries for operation during a short-term power outage

Reliability

Reliability Electric Security Mode (ESM). The barrier boom, resting against an obstacle, begins to move in the opposite direction

Convenience

Convenience Flexible settings allow you to achieve a smooth stroke of the boom in any conditions

Speed

Speed Opening time from 1 second

Barrier cabinet made of galvanized and painted steel, protection class IP54. The ideal solution for constant intensive use.


Technical details

Protection class:
IP 54
Power supply voltage:
230 V (50 Hz)
Motor supply voltage:
36 V
Power:
270 W
Opening time 90°:
1 - 2 s
Intensity of use:
HIGH INTENSITY
Torque:
100 Nm
Operating temperature range:
-40ºC .. +55ºC with heater; -20ºC .. +55ºC without heater


Cere o oferta

Categorii Recomandate






Incarcare...






Conexiunea a fost inchisa. Va rugam sa reincarcati pentru a restabili functionalitatea.





Conexiunea a fost inchisa. Va rugam sa reincarcati pentru a restabili functionalitatea.

Nu v-am putut reconecta la Server. Va rugam accesati butonul Reincarcare. Reincarcare 🗙
